Ulefone ARMOR 9

OS:Android 10 Thermal Imaging Camera

CPU:Helio P90(MT6779) Resolution:IP68 IP69K

WIFI:802.11 a/ac/b/g/n（2.4G+5G）Bluetooth:V2.1+EDR, V3.0+HS, V4.2+HS, V5.0

Battery:6600mAh Display:6.3-inch FHD+

RAM+ROM:8GB+128GB

Rear Camera:64MP+5MP(Secondary camera for the FLIR thermalimaging function)+2MP

Sensor:Acceleration Sensor, G-sensor, P-sensor, L-sensor, E-compass, Gyroscope, NFC, pedometer, coulombmeter

2G:GSM: B2/3/5/8 CDMA 1X: BC0/BC1

3G:WCDMA: B1/2/4/5/8/19 TDSCDMA: B34/B39 CDMA EVDO: BC0/BC1

4G:LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66

LTE-TDD: B34/38/39/40/41

Ulefone Armor 9's Specification

Product Size:

168.2*82*15mm

Product Weight

(phone)/(phone+accessories)

General

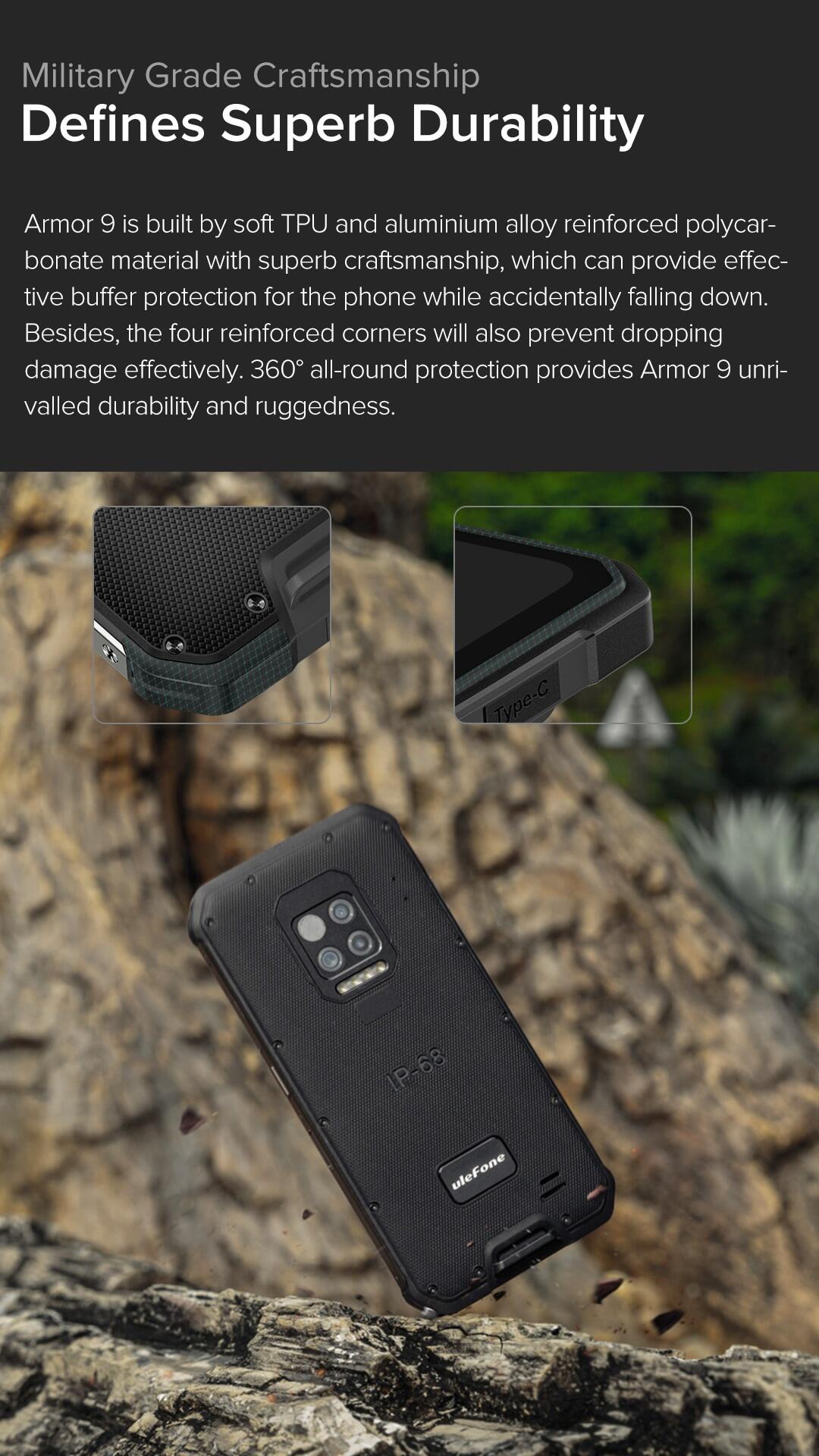

Material

TPU+10%GF+PC

Color

Black

Power Adapter

9V/2A (18W fast charge)

System

OS

Android 10

CPU

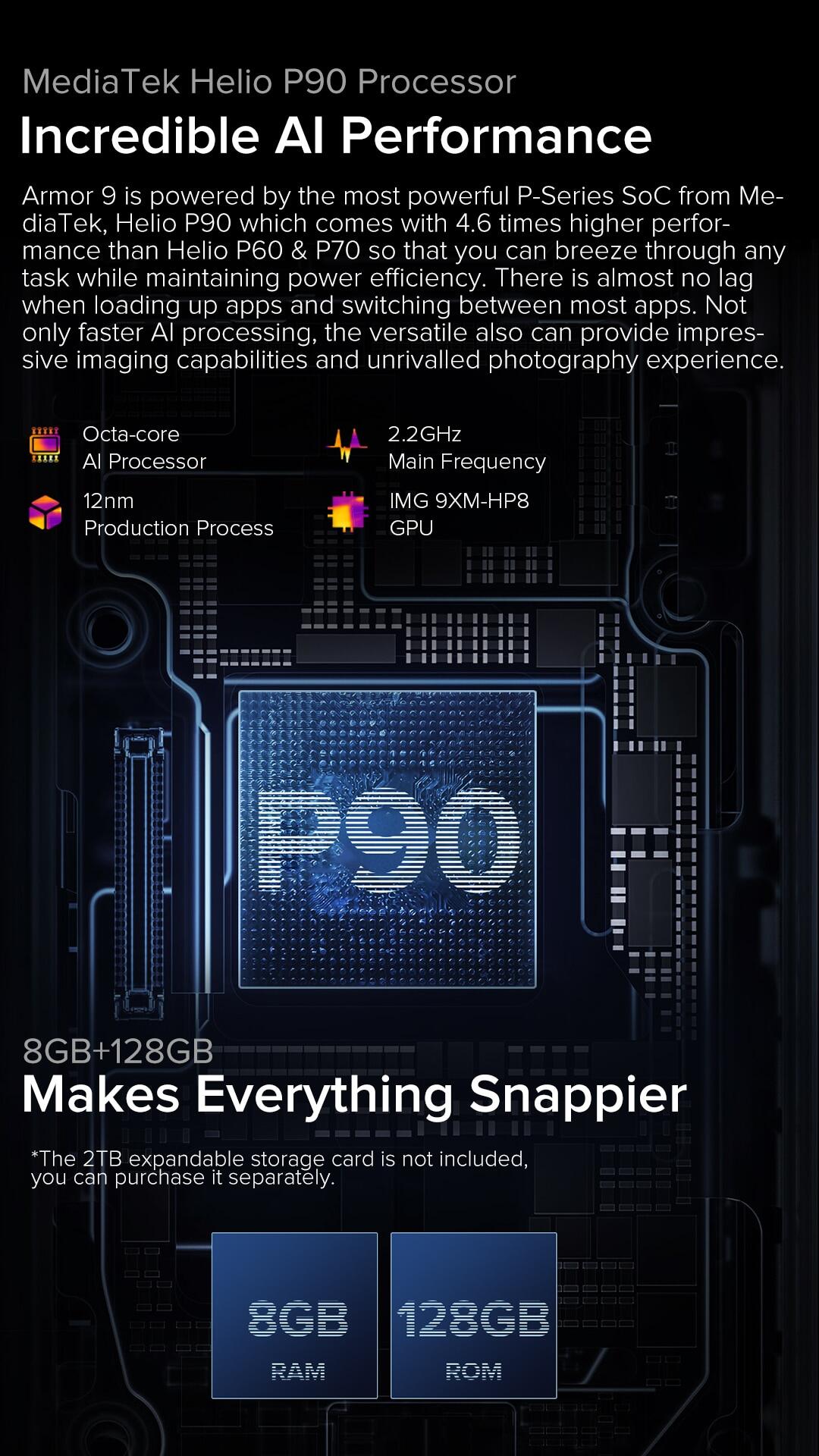

Helio P90(MT6779)

CPU Core

Octa-core 64-bit 2.2GHz

GPU

IMG 9XM-HP8@970MHz

Language

Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese

Storage

RAM

8GB

ROM

128GB

Memory Card

Yes

Max. Expansion Supported

2TB

Display

Screen Size

6.3-inch FHD+

Screen Resolution

1080*2340

Multi-touch

5

Camera

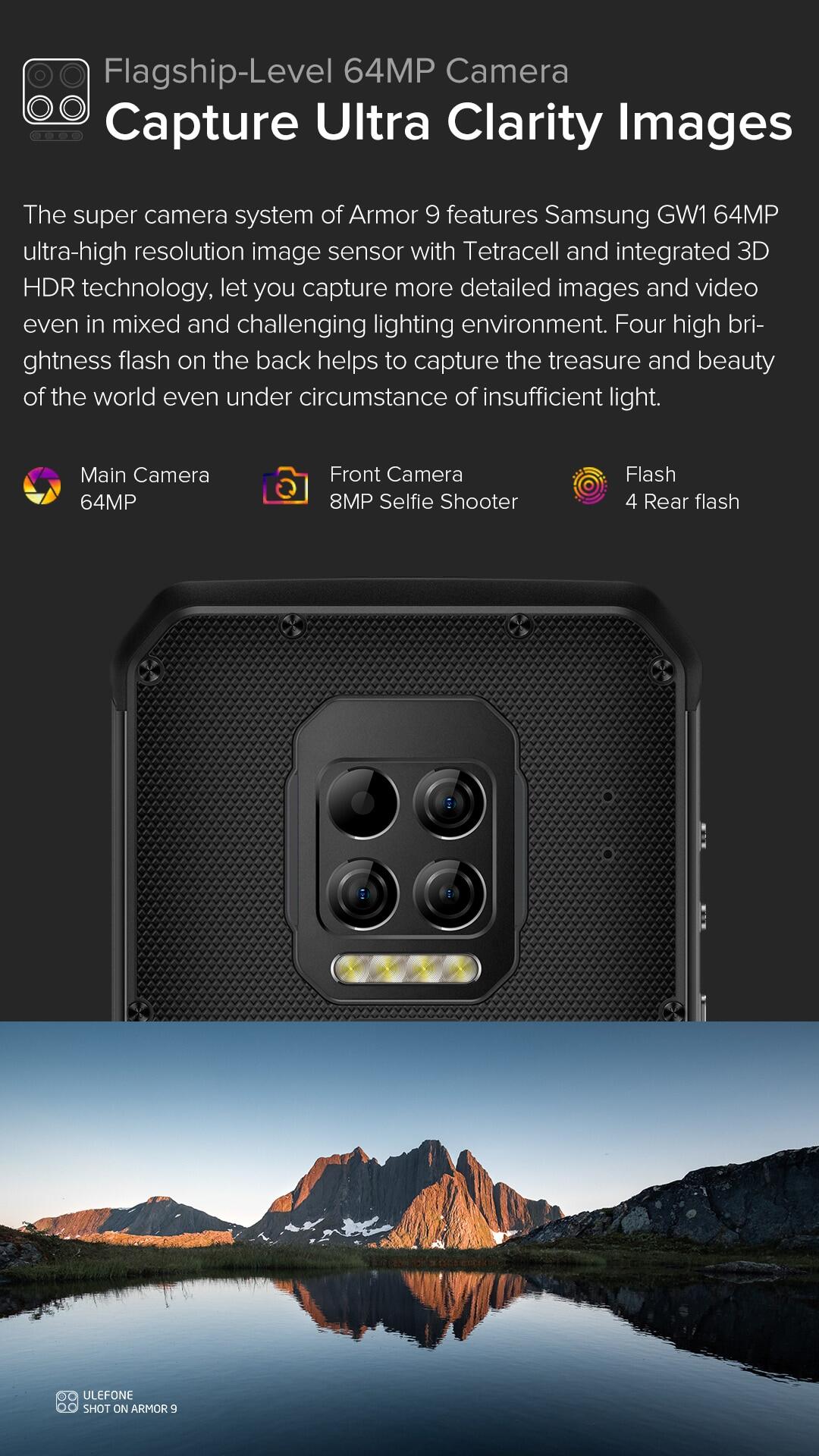

Back Camera Pixel

64MP+5MP(Secondary camera for the FLIR thermal imaging function)+2MP

Front Camera Pixel

8MP

Flash

Four Rear flash

Video Recording Resolution

1080P/4K Recording

Touch Focus

Support

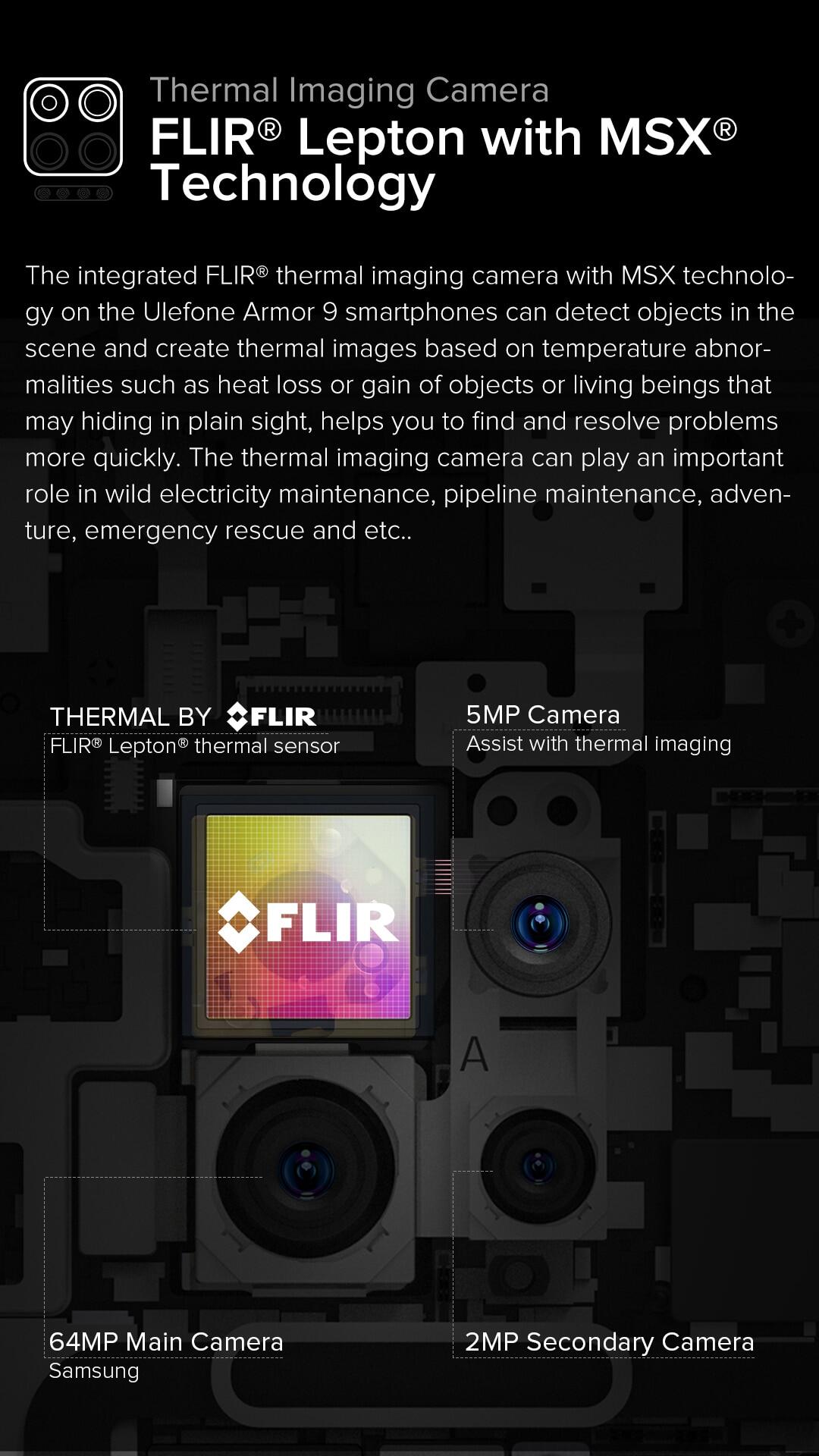

Thermal Imaging Camera

Thermal Imaging Module

FLIR Lepton 2.5, 80X60, 50° HFOV, radiometric

Sensor Technology

Uncooled VOx microbolometer

Effective Frame Rate

8.6 Hz (commercial application exportable)

Input Clock

25-MHz nominal, CMOS IO Voltage Levels

Output Format

User-selectable 14-bit, 8-bit (AGC applied), or 24-bit RGB (AGC and colorization applied)

Pixel Size

17 µm

Scene Dynamic Range

'-10-140 °C (high gain); up to 400°C (low gain) typical

Spectral Range

Longwave infrared, 8 µm to 14 µm

Temperature Compensation

Automatic. Output image independent of camera temperature.

Thermal Sensitivity

<50 mK (0.050° C)

Video Data Interface

Video over SPI

Non-Operating Temperature Range

'-40 °C to +80 °C

Optimum Temperature Range

'-10°C to +80°C

Shock

1500 G @ 0.4 ms

Array format

80 × 60, progressive scan

FOV - Diagonal

63.5°

FOV - Horizontal

50° (nominal)

Image Optimization

Factory configured and fully automated

Non-Uniformity Correction (NUC)

Automatic with shutter

Solar protection

Integral

Input Supply Voltage

2.8 V, 1.2 V, 2.5 V to 3.1 V IO

Power Dissipation

150 mW (operating), 650 mW (during shutter event), 4 mW (standby)

MyFLIR Application

Features

Spot Meters

3-moveable

ROI

Whole image and rectangle (resizable)

Min, Max, Average

MSX

Yes

Visible only

Yes

Alignment Tool

Yes

Save Image

Photo, Video, Time-lapse, YouTube Live

Radiometric Jpeg

Yes

FLIR Tools® compatable

Yes

Reporting

Yes

Recall Image and video

Yes

Span and Level adjustment

Yes

Span and Level Lock

Yes

Color Palettes

Yes, 9

Temperature Scale

Yes, fixed, and customizable

Help Menu

Yes, hold icon for description or use guided menu

Network

Cellular

2G/3G/4G

Band Details

2G:

GSM: B2/3/5/8

CDMA 1X: BC0/BC1

3G:

WCDMA: B1/2/4/5/8/19 TDSCDMA: B34/B39

CDMA EVDO: BC0/BC1

4G:

LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66

LTE-TDD: B34/38/39/40/41

Network Conversation

Dual sim dual standby

WLAN

802.11 a/ac/b/g/n（2.4G+5G）

SIM Card Type

Type 1: Nano sim*1 + Nano sim*1

Type 2: Nano sim*1+ TF card

Navigation

GPS+GLONASS+北斗+Galileo

NFC

Yes

HiFi

FS1860U

Bluetooth Version

V2.1+EDR, V3.0+HS, V4.2+HS, V5.0

Power

Capacity

6600mAh

Watt Hours Per Battery

25.4Wh

Standby Time

510H

Talk Time

25H

Battery Type

Li-poliymer battery

Other Features

Sensor

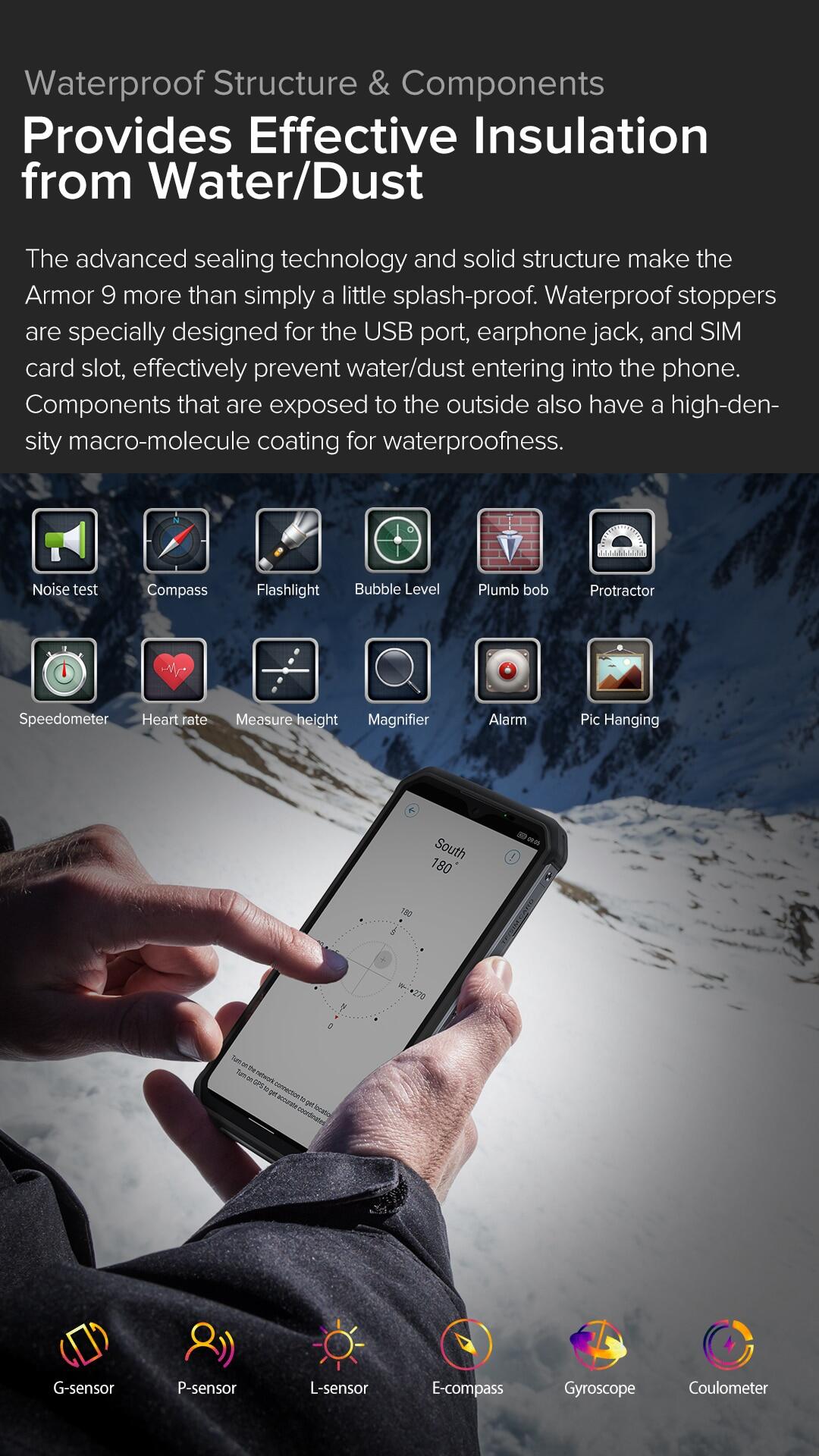

Acceleration Sensor, G-sensor, P-sensor, L-sensor, E-compass, Gyroscope, NFC, pedometer, coulombmeter

Blinking Notification Light

Yes

Battery Status Light

Yes

Face Unlock

Yes

OTG

Yes

VoLTE

Whether you can use VoLTE depends on the local carriers, because not all of the the local carriers can support this function.

I/O Interface

Type C 2.0

USB

Type C 2.0

Audio Jack

3.5mm

Software

Normal

Audio Format Supported

MID/FLAC/MKA/APE/MP3/M4A/AAC/AMR/WAV

Video Format Supported

MOV/FIV/MKV/AVI/3GP

Image Format Supported

GIF/JPEG/PNG/BMP

Text Format Supported

TXT/HTML

FM Radio

Yes

Wireless Charge

No

Certification

CE, FCC, TAC IMEI, MSDS, UN38.3, IEC62133, IP68, IP69K, MIL-STD-810G
